# Disassemble BOM

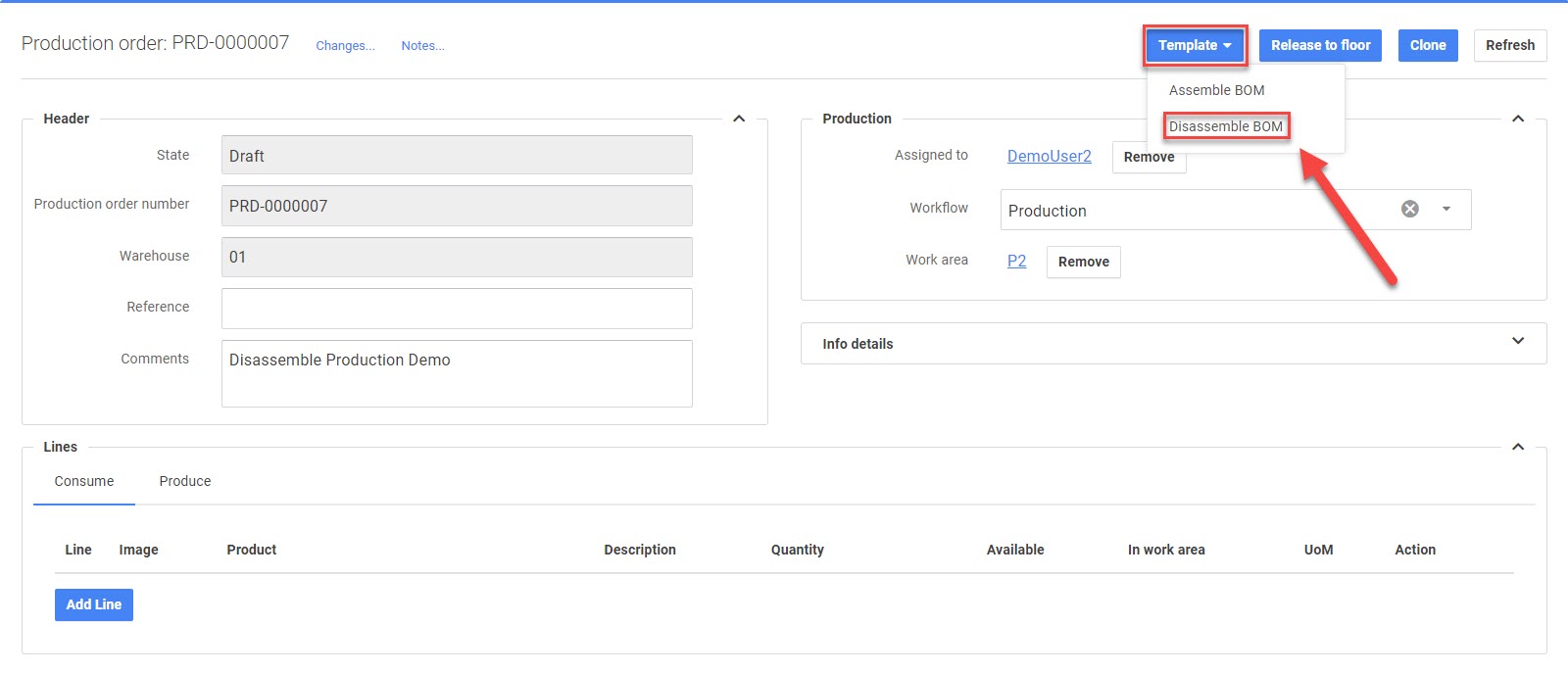

Select "Disassemble BOM" option from the drop down menu. Only one production template can be used at the same time.

<figure><img src="https://4069128715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5fCRH6psoWyRQyD8J9vh%2Fuploads%2FPjCnDw5wYbRzk3igPNnc%2Fproduction_cases_6.jpg?alt=media&#x26;token=44bb7fab-9fcc-44bc-a7ff-ad358f4aef60" alt=""><figcaption></figcaption></figure>

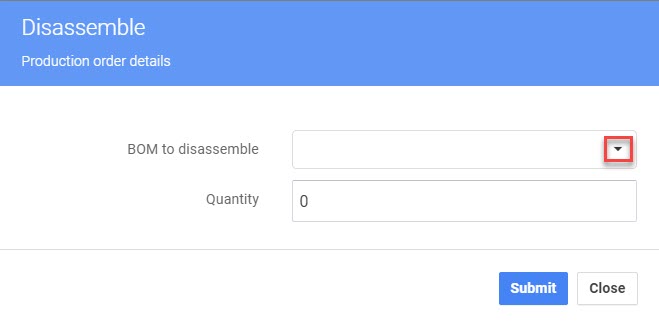

From the pop-up window, select a product you wish to disassemble into components. Drop down menu consist of products that are setup with Bill of Material (BOL).&#x20;

<figure><img src="https://4069128715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5fCRH6psoWyRQyD8J9vh%2Fuploads%2FJ6iF2ZY6RJ2BoydVtbFR%2Fproduction_cases_7.jpg?alt=media&#x26;token=25a20615-61e1-4866-bf2b-453175f6738d" alt=""><figcaption></figcaption></figure>

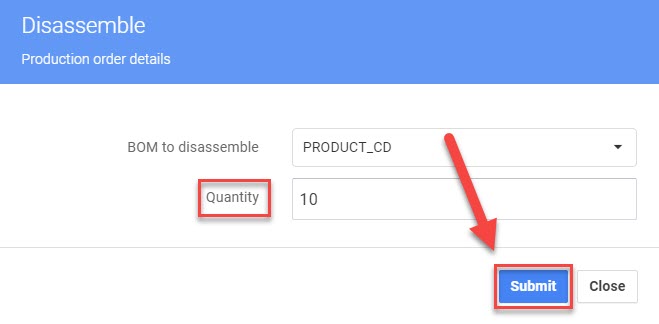

Set the number of units you wish to disassemble into parts and click 'Submit' to continue.&#x20;

<figure><img src="https://4069128715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5fCRH6psoWyRQyD8J9vh%2Fuploads%2Fxaq50RNICVrYEZnAt40r%2Fproduction_cases_8.jpg?alt=media&#x26;token=5072d0e1-b285-46b3-8a7b-b711df162b6e" alt=""><figcaption></figcaption></figure>

P4W warehouse management system will automatically calculate the number of components obtained during the disassembly of the product. Calculations are done in accordance with BOM of selected product.

## Lines - Consumables

<figure><img src="https://4069128715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5fCRH6psoWyRQyD8J9vh%2Fuploads%2F2f61kS124UFn9qMUmd53%2Fproduction_cases_9.jpg?alt=media&#x26;token=1e101eb2-6e0b-4e56-b0e2-0114aac7d5d0" alt=""><figcaption></figcaption></figure>

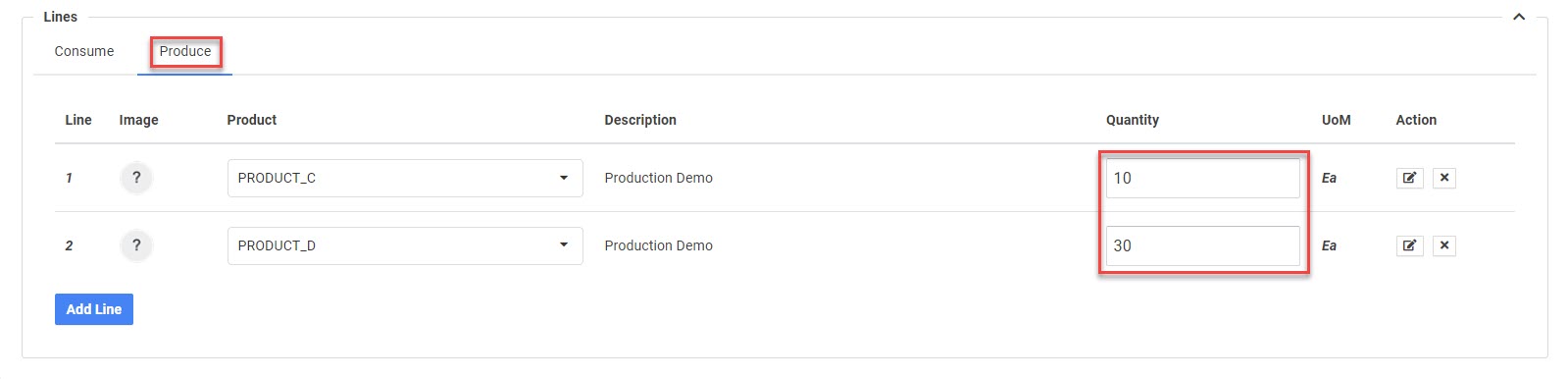

## Lines - Produce

<figure><img src="https://4069128715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5fCRH6psoWyRQyD8J9vh%2Fuploads%2FsoP89fgEWN9Jk3nFMMjr%2Fproduction_cases_10.jpg?alt=media&#x26;token=8919fe37-3863-408e-9a54-f3c7ff89ba4d" alt=""><figcaption></figcaption></figure>

While using disassemble template, users can manually add product to production order if needed.

The order is now ready to be released to floor, allocated, and produced by the handheld operators.

{% hint style="info" %}
Notice: To avoid inventory management discrepancies, make sure to select appropriate 'Product Consumption' mode in system configuration.
{% endhint %}
